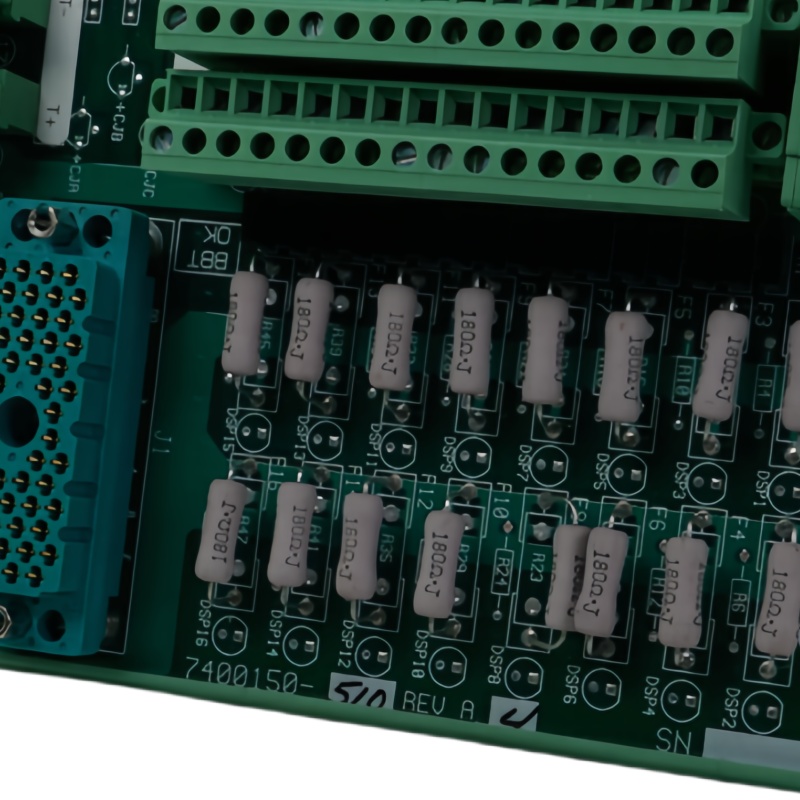

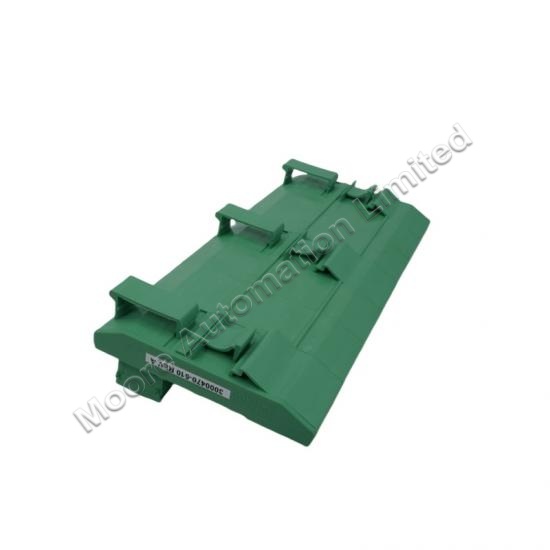

TRICONEX 9760-210 ANALOG INPUT MODULE

9760-210
9760-210
9760-210
9760-210
9760-210

TRICONEX 9760-210 ANALOG INPUT MODULE

Same Day Shipping for Stock Items

DHL / Fedex / UPS / Aramex

Professional one-on-one service

100% brand new and original


The TRICONEX 9760-210 Analog Input Module is a critical component of the Triconex™ Safety Instrumented System (SIS), designed to provide reliable analog signal acquisition in high-integrity industrial applications..


  • Picture/Video

    Get Products pictures or Video for Inspection

  • Email

    plcinfo@mooreplc.com

  • Whatsapp

    +86 18020776786
Inquiry now
whatsapp
Email
  • Specifications

  • Specification

    Product Image

    Brand Name

    TRICONEX



    Model Number

    9760-210

    Alternate Part Number

    9760-210

    Condition

    100% Original

    Quality

    Brand New

    Dimensions

    25.1x11.2x6cm

    Description

    ANALOG INPUT MODULE

    Package

    Original Package

    Lead time

    In Stock

    Shipping term

    UPS DHL TNT EMS Fedex

    Payment

    T/T (Bank Transfer)

    Service

    One-Stop Service

    Weight

    0.64kg

    Warranty

    12 Months

  • Product Details

  • Product Description
    The TRICONEX 9760-210 Analog Input Module is a critical component of the Triconex™ Safety Instrumented System (SIS), designed to provide reliable analog signal acquisition in high-integrity industrial applications. This module converts analog input signals (e.g., 4–20 mA, 0–10 VDC) from field sensors (e.g., pressure transmitters, temperature sensors) into digital data for processing by the Triconex controller. It ensures precise monitoring and control of safety-critical processes in industries such as oil and gas, chemical, and power generation.


    Specifications
    General
    Manufacturer: TRICONEX (Schneider Electric)
    Model: 9760-210
    Type: Analog Input Module
    Application: Safety Instrumented Systems (SIS), Process Automation
    Electrical
    Input Channels: 16 channels (configurable for voltage or current)
    Signal Range:
    Current: 4–20 mA (with HART support optional)
    Voltage: 0–10 VDC, ±10 VDC (configurable)
    Resolution: 16-bit analog-to-digital conversion
    Isolation: Channel-to-channel and channel-to-system isolation (1500 VAC)
    Update Rate: Programmable per application requirements
    Environmental
    Operating Temperature: -40°C to +70°C (-40°F to +158°F)
    Humidity: 5–95% (non-condensing)
    Certifications: ATEX, IECEx (for hazardous areas), RoHS
    Mechanical


    Frequently Asked Questions (FAQ)
    Q1: How many analog input channels does the 9760-210 module have?
    A: It supports 16 configurable analog input channels, which can be individually set for current (4–20 mA) or voltage (0–10 VDC) signals.

    Q2: Is this module compatible with HART-enabled devices?
    A: Yes, the 9760-210 can support HART communication for smart field devices when configured with appropriate termination or accessories.

    Q3: Does the module support redundancy?
    A: While the module itself is not redundant, it is designed to work within Triconex’s TMR (Triple Modular Redundant) architecture for system-level fault tolerance.

  • Service and Warranty

  • NOTE:

    1. The products quoted are brand new and original with a one-year warranty

    2. Prices are ex works, for shipping calculations, Please send to my Email

    3. Cooperation with the express delivery of DHL / Fedex / UPS / Aramex, etc,Delivery time is approximately '' 5 days ''  from our warehouse to the destination country

    4. Quotation validity: 30 days, if you need to extend, please reconfirm the price after 30 days.

    5. Payment Term: 100% advance payment by bank transfer.

    6. For the products '' in stock '' in the offer, our company can support video inspection
