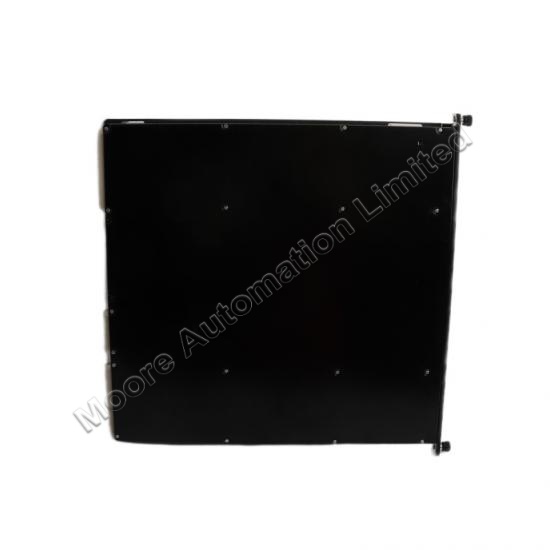

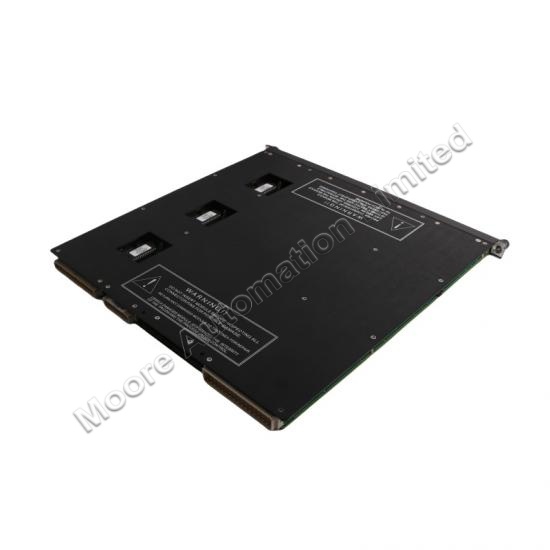

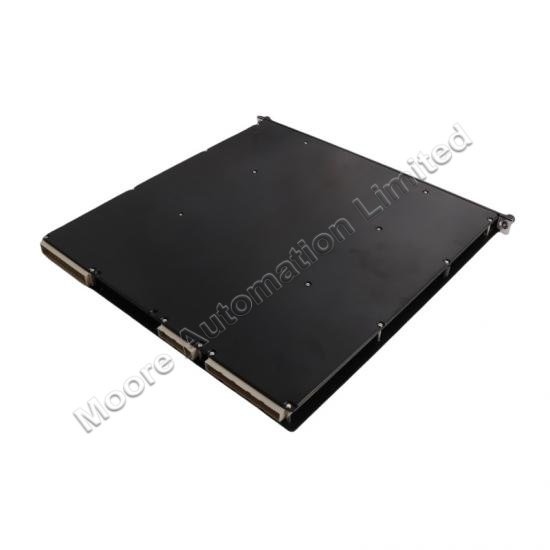

TRICONEX 3511 Pulse Input Module

3511
3511
3511
3511
3511

TRICONEX 3511 Pulse Input Module

Same Day Shipping for Stock Items

DHL / Fedex / UPS / Aramex

Professional one-on-one service

100% brand new and original


The TRICONEX 3511 Pulse Input Module is a high-reliability interface designed to process pulsed signals from field devices such as turbine flow meters, rotary encoders, and tachometers in safety-critical applications.


  • Picture/Video

    Get Products pictures or Video for Inspection

  • Email

    plcinfo@mooreplc.com

  • Whatsapp

    +86 18020776786
Inquiry now
whatsapp
Email
  • Specifications

  • Specification

    Product Image

    Brand Name

    TRICONEX



    Model Number

    3511

    Alternate Part Number

    3511

    Condition

    100% Original

    Quality

    Brand New

    Dimensions

    2.2x40.8x39.8cm

    Description

    Pulse Input Module

    Package

    Original Package

    Lead time

    In Stock

    Shipping term

    UPS DHL TNT EMS Fedex

    Payment

    T/T (Bank Transfer)

    Service

    One-Stop Service

    Weight

    2.38kg

    Warranty

    12 Months

  • Product Details

  • Product Description
    The TRICONEX 3511 Pulse Input Module is a high-reliability interface designed to process pulsed signals from field devices such as turbine flow meters, rotary encoders, and tachometers in safety-critical applications. Part of the Triconex™ Safety Instrumented System (SIS), it ensures accurate pulse counting and frequency measurement for monitoring speed, flow, or rotational parameters in industries like oil and gas, power generation, and chemical processing.


    Specifications
    General
    Manufacturer: TRICONEX (Schneider Electric)
    Model: 3511
    Type: Pulse Input Module
    Application: Safety Instrumented Systems (SIS), Process Monitoring
    Electrical
    Input Channels: 8 independent pulse input channels
    Signal Types:
    NAMUR-compliant sensors (IEC 60947-5-6)
    Dry contact (mechanical switch inputs)
    Voltage pulses (12–24 VDC)
    Frequency Range: Up to 10 kHz (per channel)
    Resolution: 24-bit pulse counting
    Isolation: Channel-to-channel and channel-to-system isolation (1500 VAC)
    Environmental
    Operating Temperature: -40°C to +70°C (-40°F to +158°F)
    Humidity: 5% to 95% (non-condensing)


    Frequently Asked Questions (FAQ)
    Q1: How many pulse input channels does the 3511 module have?
    A: The module provides 8 configurable pulse input channels, each capable of handling different signal types.

    Q2: What types of pulse signals are supported?
    A: It supports NAMUR sensors, dry contacts (switches), and voltage pulses (12–24 VDC).

    Q3: Can this module interface with rotary encoders?
    A: Yes, it can process signals from incremental encoders if the frequency and voltage levels are within specifications.


  • Service and Warranty

  • NOTE:

    1. The products quoted are brand new and original with a one-year warranty

    2. Prices are ex works, for shipping calculations, Please send to my Email

    3. Cooperation with the express delivery of DHL / Fedex / UPS / Aramex, etc,Delivery time is approximately '' 5 days ''  from our warehouse to the destination country

    4. Quotation validity: 30 days, if you need to extend, please reconfirm the price after 30 days.

    5. Payment Term: 100% advance payment by bank transfer.

    6. For the products '' in stock '' in the offer, our company can support video inspection
